High Quality Sae1045 Honed Tubing for Hydraulic Cylinder, Sae1045 Honed Tubing, Sae1045 Honed Tubing for Cylinder Suppliers in China

Home > Products > Hydraulic Cylinder > SAE1045 Honed tubing for hydraulic cylinder

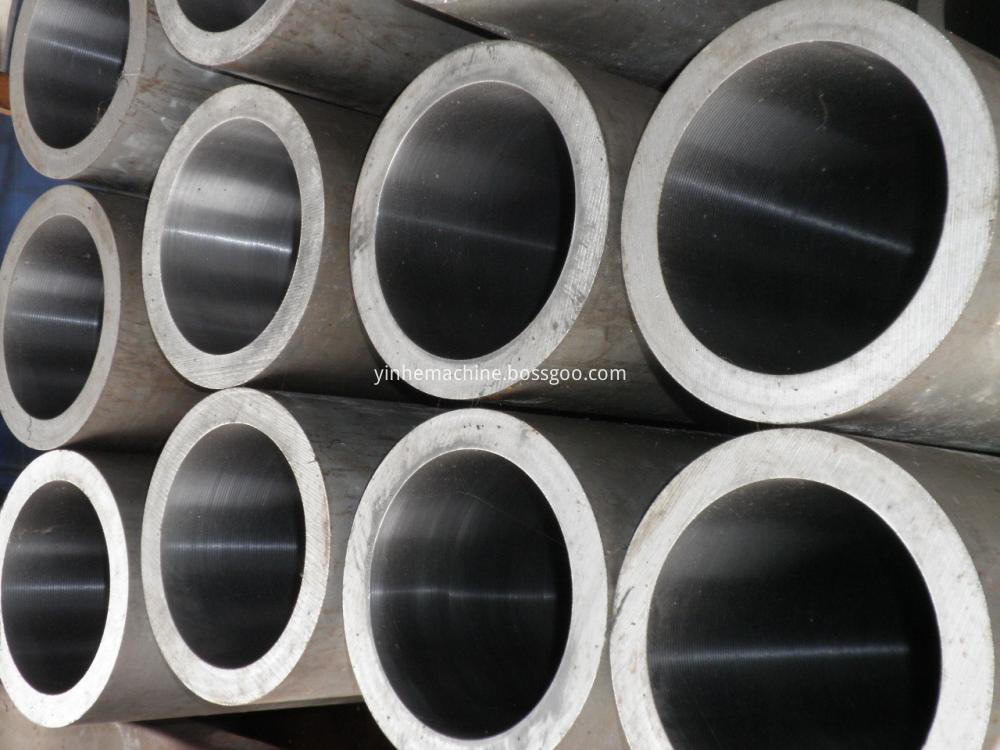

SAE1045 Honed tubing for hydraulic cylinder

  • SAE1045 Honed tubing for hydraulic cylinder
  • SAE1045 Honed tubing for hydraulic cylinder
  • SAE1045 Honed tubing for hydraulic cylinder

SAE1045 Honed tubing for hydraulic cylinder

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CIF
    Delivery Time: 30 Days
    Packaging: Seaworthy export packing for SAE1045 honed tubing for hydraulic cylinder
    Brand: Yinhe
    Transportation: Ocean
    Place of Origin: Jiangsu, China (Mainland)
    Certificate: ISO9001
    HS Code: 84129090
    Port: Shanghai

Basic Info

Model No.: 40mm*30mm - 600mm*500mm

Product Description

1. Manufacture Method: Cold drawn, hot rolled+deep hole bored

2. Size: 40mm*30mm - 600mm*500mm

3. Standard: DIN2391-2,EN10305-1,ASTM A519

4. Certification: ISO9001

Product Name:
SAE1045 Honed tubing for Hydraulic Cylinder
Material:
Carbon steel,alloy steel, stainless steel
Standard&Grade:
DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc.
Manufacture Method:
Cold Drawn, Hot rolled+Deep Hole Bored
Internal Surface Treatment:
Honing, Skiving&roller burnishing
Size Range:
ID of 300mm max for cold drawing, ID of 500mm for deep hole boring
Delivery Condition:
As rolled, Stress relieved,Annealed,Normalized,Quenched+Tempered
ID Tolerance:
ISO H8
Bore Roughness:
Ra0.35um max for honed tubes, Ra0.25um Max for Skived&roller burnished tubes
End finish:
Plain ends with square cuts,free of burrs
Usage:
Hydraulic cylinder, Pneumatic Cylinder
Chemical Composition
C:0.43-0.50, Si:0.15-0.35, Mn:0.60-0.90, P:0.030 Max, S:0.025 Max
Mechanical Properties
T.S: 600 Mpa min, Y.S: 520 Mpa min, Elongation: 10% min
Products Show
Hydraulic Cylinder22



Our Service

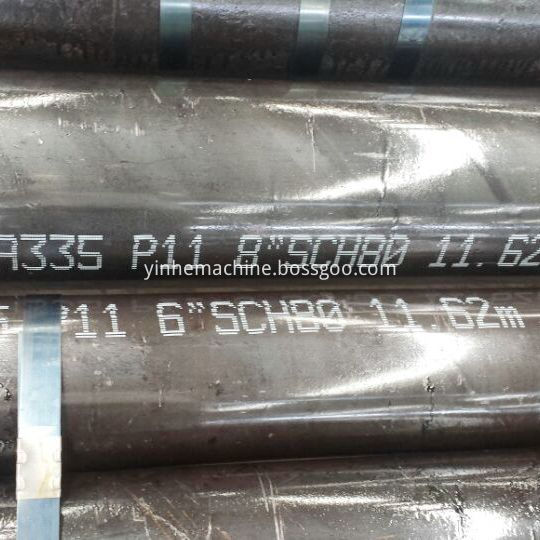

Marking

Marking

Marking or mechanical steamp on each piece of tube

External surface polishing

We can do polishing to external surface of tubes

Hard Chrome plating

We can do hard chrome plating ro internal surface of tubes

Our Company
Yinhe Company 2
workshop 1

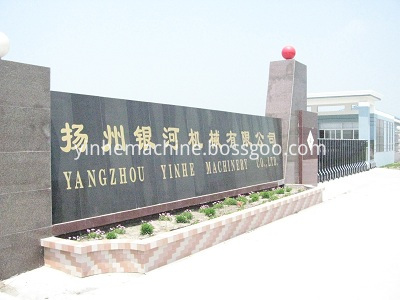

Factory gate

Our Factory

Workshop-1



workshop 2

Workshop-2

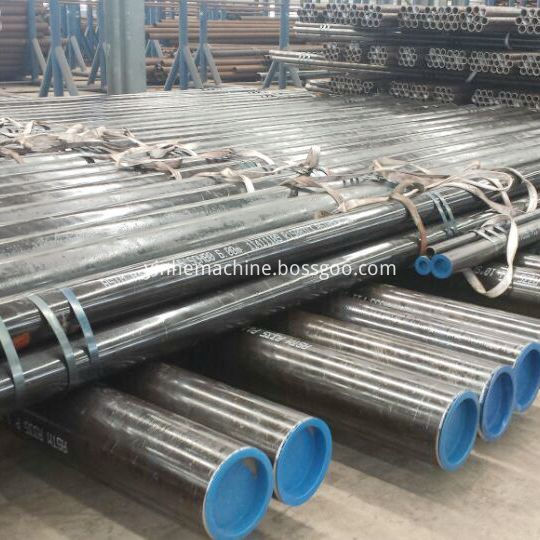

Raw Material Stock

workshop-3


workshop 3
Packing & Delivery

Packing Details : Tubings packed in bundles tied with steel strips. Internal&external oil coating. End plastic caps. External packing by PVC bags and knit bags.

Delivery Details : Regular lead time is around 30-45 days.

Container loading: container loading by forklift in our workshop.



Packing And Delivery
1. Regular packing
2. Regular packing
3. External packing


Tubes Package

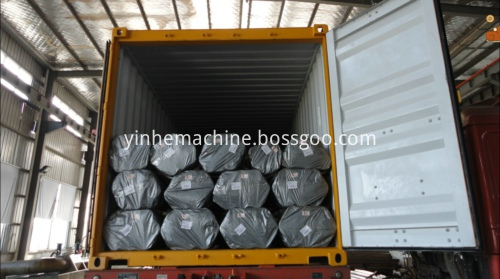

4. Container loading
5. Container loading
6. Container loading
FAQ

Q: Are you trading company or manufacturer ?

A: We are specialized manufacturer

Q: How long is your delivery time?

A: Generally,it takes us 40-60 days depending on sizes of honed tubing for hydraulic cylinder.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Deposit+balance before shipment,if order value is below USD20000. T/T or L/C is order value is above USD20000. For end users with long term demand,payment method can be discussed.


Q: How do you ensure quality?

A: We only use raw material for honed tubing from leading steel mills like TPCO,Hengyang Valin,Baosteel,etc.

We only use raw material for honed tube with cylinder quality.

We inspect honed tubing as cylinders itself, because we know each piece of tube means one or more pieces of cylinders.



Company Profile

Yangzhou Yinhe Machinery Company Ltd. was established in 2006 and is located in Jiangdu, the east district of Yangzhou city, the company now has been the national brand owner and the large manufacturer of the cold drawn pipes, honing pipes, cutting and rolling pipes after years` hard works and innovation. The company covers an area of 28,000 square meters with the yearly capacity of 20,000 tons of Hydraulic Cylinder.


The company has unique production technology, good quality and hence lists premier of the other sellers in the manufacturing of the high precise cold drawn pipes and precise seamless steel pipes.

The company is mainly doing the manufacture of hi-precision cold-drawn tubes, honing tubes, deep hole boring steel pipes, cutting and rolled tubes. The specification is from Φ40 to Φ630mm, the OD is from Φ50mm to Φ820mm, the length is less than 13.5 meters, the degree of finish can reach from 0.2µm to 0.8µm, the straightness is 0.5/1000, and the ID tolerance is H8.

The production standard is strictly according to GB/T 8163-2008.GB/T 3639-2009. The materials are 20#.45#.16Mn.27SiMn, etc. and we also make products against the customers` special needs. The company also has the outside business of pickling, phosphating, heat treatment, cold drawing, cutting rolling, and straightening.

There are 69 employees, 80% of them is the technician. For follow on the fast step of the social development, the company organizes different training and hire new personnel. The principle of the company is to put quality in the first place and meet customers` needs in the first place. The quality principle of the company is working hard and be very careful towards manufacture and pursue No.1 in the field. We always care about the customers` satisfaction.

The company`s products are mainly applies to the following:

(1)cranes, excavators, bulldozer and forklift, etc.

(2)woodworking hydraulic machines, water gate hoist, lifting machinery, jack, etc.

(3)hydraulic support oil cylinder under coal mine and electric hydraulic draw stem.

The company has products of all specifications in the field and equipped with full devices for manufacture and it owns advanced physical and chemical testing skills. There are high-precision hydraulic cold-drawing unit, 450KW box annealing furnace, pickling phosphating and environmental treatment equipment, SRB cutting roller unit, honing machine, universal testing machine in the company. The company also owns the deep hole rolling equipment, the inner hole can be bored up to 630 mm, the single steel tube can be processed within 12 meters. The automatic computer controls 13 bar straightening machine, this equipment makes the straightness up to 0.4mm/m. the product`s quality and efficiency have been greatly improved, which greatly reduces the labor`s production intensity as well.

With good reputation, high quality products, competitive prices, and thoughtful services, the company`s customers are now spread all over the country and the products are exported to the overseas markets. We sincerely welcome friends from home and abroad to visit and give us advice.

We treat customers with sincerity and honesty; we make quality assurance and timely delivery of products. In the mean time, we will continually put into the company with new equipment and most importantly the innovation as a way that making the company`s future more beautiful!




Company Info

  • Company Name: Yangzhou Yinhe Machinery Co., Ltd
  • Representative: Li XiaoGen
  • Product/Service: Cold Drawn Tube , Honing steel Tube , SRB extrusion steel pipe , elevated temperature steel tubes , mechanical alloy steel tubes , electric resistance tubes
  • Capital (Million US $): 10000000RMB
  • Year Established: 2006
  • Total Annual Sales Volume (Million US $): US$10 Million - US$50 Million
  • Export Percentage: 21% - 30%
  • Total Annual Purchase Volume (Million US $): US$10 Million - US$50 Million
  • No. of Production Lines: 3
  • No. of R&D Staff: 11 -20 People
  • No. of QC Staff: 11 -20 People
  • OEM Services Provided: yes
  • Factory Size (Sq.meters): 10,000-30,000 square meters
  • Factory Location: Yangzhou jiangdu district pu tou town industrial park
  • Contact Person: Ms. Rebecaa yin
  • Tel: 86-0514-86426788
